Beretta T38
The Beretta T38 is a heavy-duty foundation drilling rig designed for demanding applications requiring high torque and strong drilling performance. With a 55 kW (75 HP) engine, up to 1,010 daNm of rotary torque, and an adjustable width of 780–1,200 mm, the T38 offers excellent power and versatility across a range of foundation drilling projects.
Key features:
- 55 kW (75 HP) engine
- 1,200–2,200 mm mast working stroke
- 40–50 kN retract force
- 4,200–4,700 kg operating weight
- 780–1,200 mm adjustable width
- 400–1,010 daNm rotary torque
- 210–1,000 RPM rotary speed
- 219 mm maximum clamp diameter
-

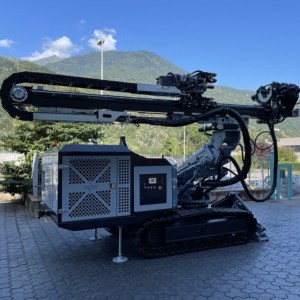

Ripamonti Eagle 1021 Micropiling & Anchoring Rig
The Ripamonti Eagle 1021 is a robust and powerful drilling rig designed for micropiling, anchoring and ground consolidation. Its advanced boom and mast system provides a large drilling area with precise positioning, while the radio remote control allows for safe and efficient operation on site.
Key features:
- 95 kW Kubota V3800 Stage V engine
- 3,350 mm standard mast stroke
- 4,500 kg standard pullback / 6,500 kg optional
- 2,000 mm machine width
- 5,150 mm working length
- 80–220 mm drilling diameter
- ±90° lateral boom swing
- 180° + 180° mast rotation
- 850 mm backfeed and 600 mm boom zoom
- Radio remote control with LCD diagnostics
- Suitable for DTH, rotary, percussion and self-drilling anchor systems
- Ideal for micropiles, tie rods, anchors and consolidation works
-
Beretta T23
The Beretta T23 is a compact, high-performance foundation drilling rig designed for demanding drilling applications where power and manoeuvrability are important. With a 43hp (32 kW) engine, up to 370 Nm rotary torque, and an adjustable width of 700–1,000 mm, it offers a strong combination of drilling capability and access in restricted areas.
Key features:
- 32 kW (44 HP) engine
- 950–2,200 mm mast working stroke
- 25 kN retract force
- 700–1,000 mm adjustable width
- 148 or 370 daNm rotary torque options
- 65–390 RPM rotary speed
- 168 mm maximum clamp diameter
- Weight 2300kg – 2500kg
