Product Description

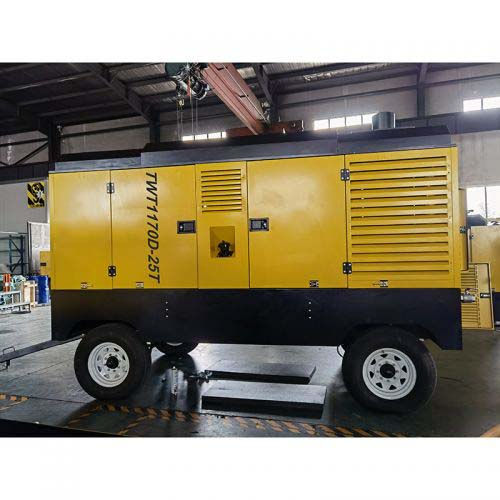

The Air Connex 1170CFM/21BAR portable air compressors are equipped with high efficiency two stage air-ends. These units come with Swedish manufactured VOLVO Diesel Engines. These units are suitable for Water Well Drilling, Geothermal Drilling, Oil & Gas Exploration, Mining, Piling & large DTH Drilling applications.
Features & Benefits:
1. Screw Air-end Super rotor, low speed (5 years/10000 hours warranty)
2. Volvo Diesel Engine, excellent starting performance at low temperatures, 3,000 hours/2 year warranty .
3. Intelligent Controller with full running alarm shutdown protection system.
4. Optional GPS/GPRS remote control & monitoring: Real time monitoring the use of machinery, timely maintenance to ensure the normal production of equipment.
5. Intake system life tested more than 1 million times.
Technical Specifications:
Model | TWT1170D-21T (Skid-mounted optional) |
Compressor Stage | Single Stage |
Free Air Delivery (CFM/ M3/min) | 1,170/33 |
Working Pressure (psig/bar) | 304.5/21 |
Screw Oil Volume-(L) | 165 |
Diesel Engine | Volvo |
Engine Model | TAD1353VE |
Rated Power (HP/KW) | 470/345 |
Rated Speed/Idle (rpm) | 1,900/1,350 |
Cylinders | 6 |
Bore (mm) | 131 |
Stroke (mm) | 158 |
Compression Ratio | 17.1:1 |
Displacement (L) | 12.8 |
Emission Class | EU III/TIER 3 |
Battery Voltage (V) | 24 |
Fuel Tank Capacity (L) | 720 |
Connector Size*Qty | G3/4" *1, G 2"* 1 |
Wheel Size*Qty | 7.50-16*4 |
Weight (Kgs) | 6500 |
Dimension (mm) | 4,885*2,100*2,585 |
Noise {dB(A)} | 76±3 |
Working Temp.(℃) | -15℃~50℃(special conditions can be customized) |
Note: Specifiations are subject to change without further notice.
