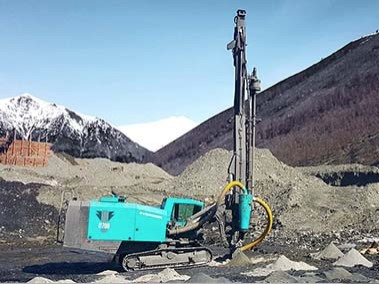

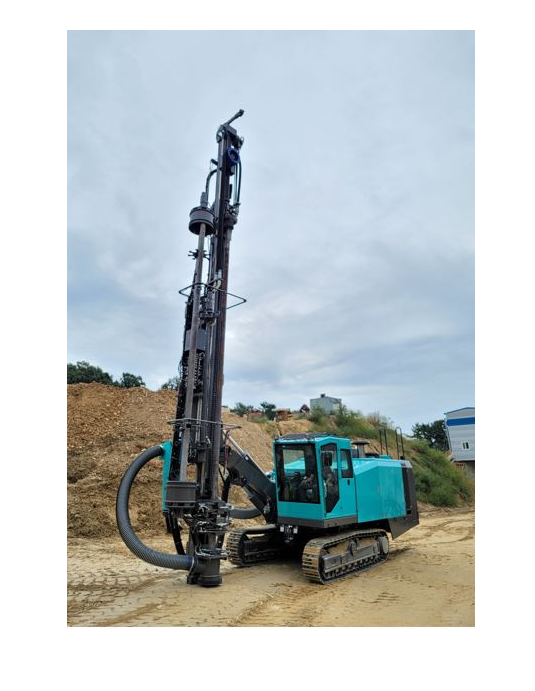

BLAST-HOLE DRILLING RIGS
DTH DRILL RIGS
SPECIFICATIONS
Caterpillar C13, Tier 3
328 kW (440hp) at 1,800 rpm
780 litres
Engine
D800
D700
Model
Rated Output
Fuel Tank Capacity
Hole Range
Hammer Sizes
4", 5", 6" (102mm, 127mm, 152mm)
Hole Depth
55m Max.
Hole Sizes
115mm - 178mm
Feed
Max. Feed Rate
1.1 m/s
Max. Hoisting
50 kN (11,240 lbf)
Max. Pulldown
40 kN (8,992 lbf)
Total Length
10,800mm (35.4')
Travel Length
7,570mm (24.8')
Feed Extension
1,300mm (4.3')
Air Compressor
Model
HR2.5 (GHH rand)
Type
Two stage screw type
Working Pressure Max.
25 bar (362 psi)
FAD at 1800 rpm Max.
883 cfm (25 m3/min)
Rotary Head
Model
ERD65 (by Hyundai)
Max rpm
53 rpm
Max torque
5,700 Nm
Boom
Type
Single stage boom
Length
1,920mm
Swing angle
L10 / R20 degrees
Carousel (auto rod changer)
Capacity, standard
8 + 1
Max. drill tube diameter
115mm (4.5")
Min. drill tube diameter
89mm (3.5")
Drill tube length
6,000mm (20')
Electrical system
Voltage
24V
Batteries
2 x 12 V, 150Ah
Alternator
24 V, 80 A
Working Lights: Front
4 x 24 W
Rear
3 x 24 W
Working lights, feed
1 x 24 W
Dimensions
Weight
24,500 kg
Overall height
3,900 mm
Overall length
11,000 mm
Transportation height
3,500 mm
Transportation width
2,500 mm
Overall width
3,020 mm
Tramming
Tramming speed
3.8 km/hr
Grade ability
30 degrees
Track oscillation (independent)
17 degrees (F 8.5 / R 8.5)
Ground clearance
450mm
Max. traction force
140 kN
Dust Collector
Suction capacity
70 m3/min (2,472 cfm)
Number of filters
18
Extraction methods
Auto air pulse jet
Max. cleaning air pressure
8 bar
Pre-cleaner
Standard
Hydraulic system
Variable discharge
Axial piston pump (load sense) x 1
Caterpillar C15, Tier 3
403 kW (540hp) at 1,800 rpm
1,050 litres
4", 5", 6"
55m Max.
115mm - 203mm
1.1 m/s
50 kN (11,240 lbf)
40 kN (8,992 lbf)
10,800mm (35.4')
7,570mm (24.8')
1,300mm (4.3')
CF1000H (GHH rand)
Two stage screw type
24 bar (348 psi)
1,000 cfm (28.3 m3/min)
ERD65 (by Hyundai)
53 rpm
5,700 Nm
Single stage boom
1,920mm
L10 / R20 degrees
8 + 1
127mm (5")
89mm (3.5")
6,000mm (20')
24V
2 x 12 V, 150Ah
24 V, 80 A
4 x 24 W
3 x 24 W
1 x 24 W
25,100 kg
3,900 mm
11,300 mm
3,500 mm
2,500 mm (option 3,000 mm)
3,020 mm
3.8 km/hr
30 degrees
17 degrees (F 8.5 / R 8.5)
450mm
140 kN
70 m3/min (2,472 cfm)
18
Auto air pulse jet
8 bar
Standard
Axial piston pump (load sense) x 1
Selection of Optional Equipment
Drilling Depth & Angle Indicator
Electric Pre-Heating System
Cabin Window Safety Guard
Water Mist Injection System
Electric Refueling Pump
Isolation Switches (red / yellow)
Hydraulic Winch System
Rear View Camera
Rotating Beacon
GPS, GSM, 3D Capable
Pressurised Cabin
Automatic Greasing System
LED Working Lights
Triple Grouser Tracks
Reversing Alarm
Handrails, Ladder & Gate
Turbo/Hot Surface Wrapping
"Anti Slip" on painted surfaces
Anderson Type Jump Start Fittings
Rear Facing LED Red Light
Auto Fire Suppression
